Written by Elizabeth Landau
NASA’s Jet Propulsion Laboratory
Pasadena, CA – It’s tricky to get a spacecraft to land exactly where you want. That’s why the area where the Mars rover Curiosity team had targeted to land was an ellipse that may seem large, measuring 12 miles by 4 miles (20 by 7 kilometers).
Engineers at NASA’s Jet Propulsion Laboratory in Pasadena, California, have been developing cutting-edge technologies that would enable spacecraft to land at a specific location on Mars — or any other planetary body — with more precision than ever before.In collaboration with Masten Space Systems in Mojave, California, they have recently tested these technologies on board a high-tech demonstration vehicle called the Autonomous Descent and Ascent Powered-flight Testbed (ADAPT).

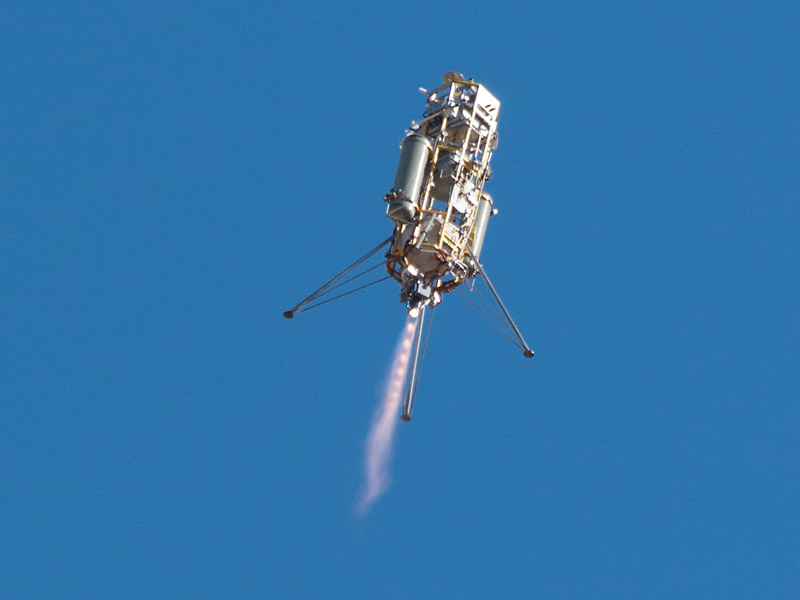

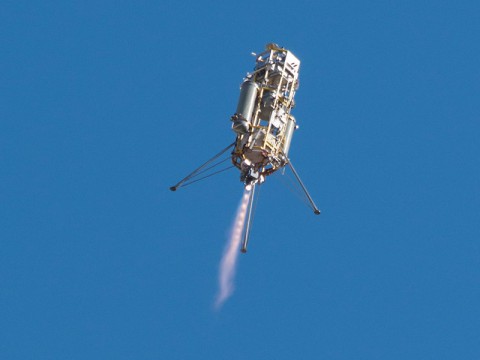

ADAPT is a test system built on Masten’s XA-0.1B “Xombie” vertical-launch, vertical-landing reusable rocket. The Xombie platform provides a good approximation of Mars-like descent conditions through high-speed descent rates at low altitudes. Those conditions are difficult to achieve through conventional flight test platforms.
Onboard this rocket, two sophisticated lander technologies were recently tested: Terrain Relative Navigation with a sensor called the Lander Vision System (LVS), and the Guidance for Fuel-Optimal Large Diverts (G-FOLD) algorithm.
“No previous Mars lander has used onboard surface imaging to achieve a safe and precise touchdown, but a future spacecraft could use LVS and G-FOLD to first autonomously determine its location and then optimally fly to its intended landing site,” said Nikolas Trawny, ADAPT’s principal investigator at JPL. “All of this happens on board, without human intervention, and in real time.”
ADAPT had two successful test flights, one on December 4th, 2014, and the second on December 9th. In both cases, the rocket reached a maximum altitude of 1,066 feet (325 meters) before beginning its descent.
The terrain-relative navigation capability provided by LVS allows Xombie to precisely determine its position without requiring GPS. To do so, ADAPT first takes a series of pictures of the terrain below it during descent.
These pictures are then compared to an image of the terrain stored onboard, allowing the vehicle to autonomously find its position relative to the landing site. The spacecraft can then use this information to correct its course to get as close to the targeted landing site as possible within its capability, and make a smooth, pinpoint landing.
The combination of LVS and G-FOLD allowed the Xombie rocket to begin to change the course of its descent at about 623 feet (190 meters) in the air on December 9th. The rocket then flew the newly calculated course to successfully reach the target landing pad located 984 feet (300 meters) to the east.
“This represents a huge step forward in our future capabilities for safe and precise Mars landing, and demonstrates a highly effective approach for rapid, low-cost validation of new technologies for the entry, descent and landing of spacecraft,” said Chad Edwards, chief technologist of the Mars Exploration Directorate at JPL. “This same technology has valuable applications to landing on the moon, asteroids and other space targets of interest.”
NASA’s Space Technology Mission Directorate is facilitating the tests via its Flight Opportunities Program managed at NASA’s Armstrong Flight Research Center at Edwards Air Force Base, California.
JPL, a division of the California Institute of Technology, Pasadena, manages the ADAPT project and funded the ADAPT payload development. The LVS prototype was designed, developed and tested by the Mars Technology Development program of NASA’s Science Mission Directorate.
