Pasadena, CA – On August 25th, 2020 several days before Hurricane Laura made landfall as a destructive Category 4 storm in Louisiana, NASA’s Terra satellite flew over Laura in the Gulf of Mexico.
Using its Multi-angle Imaging SpectroRadiometer (MISR) instrument, the satellite collected data on wind speeds and cloud-top heights as the storm intensified and moved northwest towards the U.S. Gulf Coast.
The NASA Earth Applied Sciences Disasters Program Geographic Information Systems (GIS) team worked closely with representatives from the Esri 3D team to produce the first-ever interactive 3D visualization of MISR cloud-top height data and publish it to the NASA Disasters Mapping Portal.
Cloud-top height data can be used to examine the structure of tropical storms and identify features that may indicate future strengthening or weakening of the storm system.
In this visualization, some higher clouds seen near the center of the storm may indicate a building eyewall. In other storms, features such as “hot towers” can be identified – clouds of warm, moist air within the eyewall that extend high into the atmosphere and indicate potential rapid intensification for hurricanes.
MISR also captures data on the direction and velocity of wind at the cloud tops, which aids researchers in better understanding a storms structure and potential development.

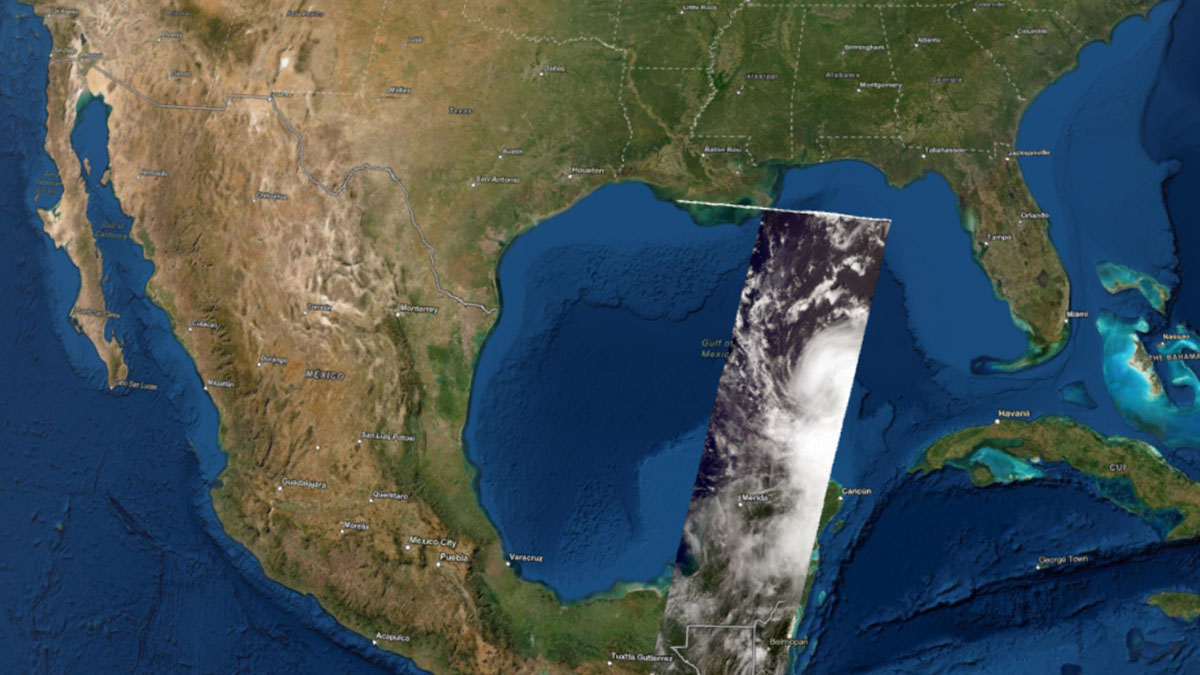

An interactive visualization of 3D cloud-top height data from Hurricane Laura on Aug. 25, 2020, captured by the MISR instrument aboard NASA’s Terra satellite. Credit: NASA Disasters Program, Esri
The MISR instrument carries nine fixed cameras, each of which views the scene from different angles over a period of about seven minutes.
The motion of the clouds between different views is then used to derive their height and velocity. MISR was built and is managed by NASA’s Jet Propulsion Laboratory for NASA’s Science Mission Directorate.
The Terra spacecraft is managed by NASA’s Goddard Space Flight Center. The MISR data were obtained from the NASA Langley Research Center Atmospheric Science Data Center. JPL is a division of the California Institute of Technology in Pasadena.
