Pasadena, CA – Since leaving Earth 15 years ago, NASA’s Mars Reconnaissance Orbiter has reshaped our understanding of the Red Planet. The veteran spacecraft studies temperatures in Mars’ thin atmosphere, peers underground with radar, and detects minerals on the planet’s surface. But perhaps what it’s become best known for are stunning images.
Among its instruments, MRO carries three cameras: The Mars Color Imager (MARCI) has a fisheye lens that produces a daily global view. The Context Camera (CTX) provides 19-mile-wide (30-kilometer-wide) black-and-white terrain shots.
Those images, in turn, offer context for the tightly focused images provided by MRO’s third camera, the High-Resolution Imaging Science Experiment (HiRISE), which produces the most striking views.
Able to zoom in on surface features at the highest resolution, the detailed, color images from HiRISE have captured dramatic scenes of nature: tumbling avalanches, skyscraping dust devils, and other features of a changing landscape.
The camera has also provided images of other NASA spacecraft at Mars, like the Curiosity and Opportunity rovers. MRO has even flipped itself around to point HiRISE out at Earth and Phobos, one of Mars’ two moons.
As of early August, HiRISE alone had taken 6,882,204 images, generating 194 terabytes of data sent from Mars since 2006. The following images are just a glimpse of the amazing work performed by all three cameras aboard MRO, which is managed by NASA’s Jet Propulsion Laboratory in Southern California.
Welcome to Mars
Dust storms are routine on Mars. Most are limited to small regions and are not as dramatic as what’s portrayed in movies. But once or twice a decade, a series of regional storms will create a domino effect, lifting enough dust for winds to cover the surface in what’s called a “planet-encircling dust event.”
This one, captured by MARCI in the summer of 2018, darkened the region above the Opportunity rover, depriving its solar panels of sunlight and ultimately leading to the end of the mission.
A Martian Sky Scraper

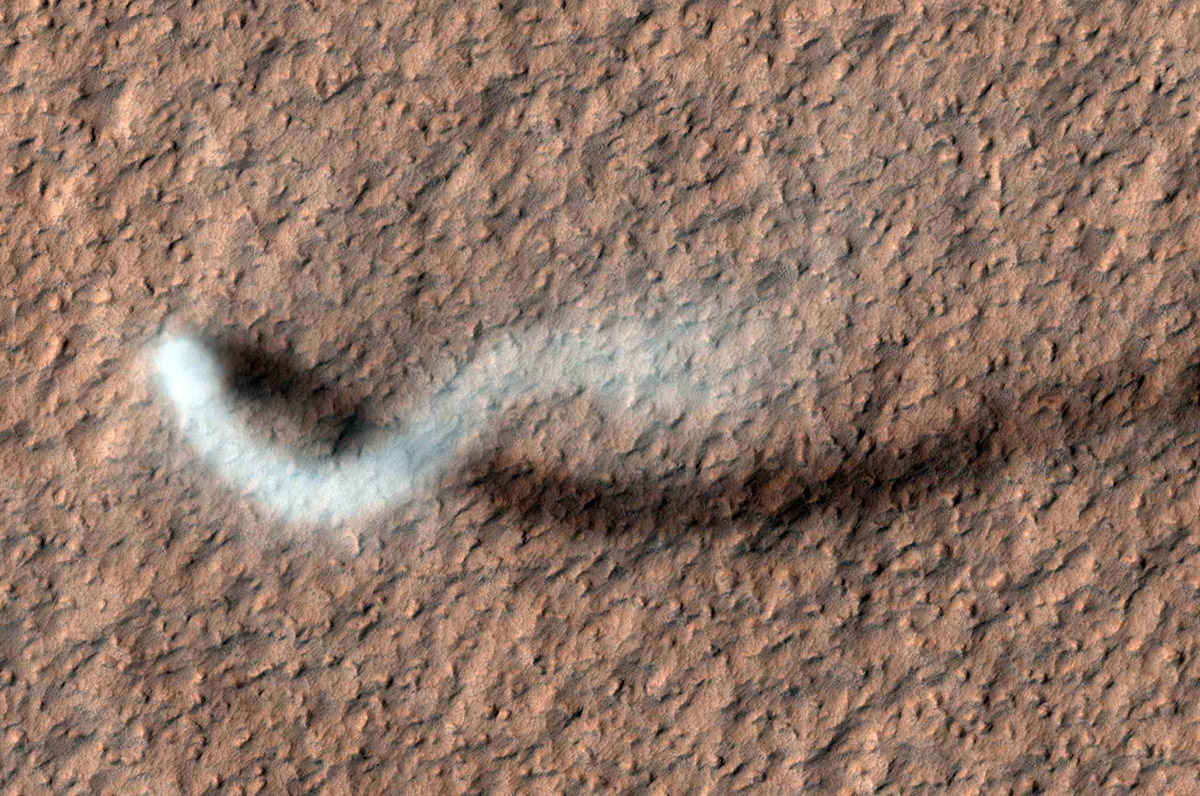

As HiRISE pans over large swaths of Mars’ surface, it occasionally discovers surprises like this towering dust devil, which was captured from 185 miles (297 kilometers) above the ground. The length of this whirlwind’s shadow indicates that it was more than half a mile (800 meters) high – about the size of the United Arab Emirate’s Burj Khalifa, the tallest building on Earth.

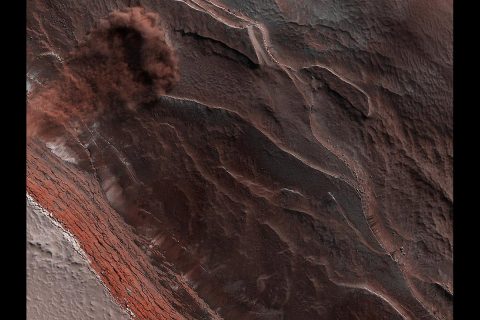

HiRISE has captured avalanches in action. As seasonal ice vaporized in the spring, these 1,640-foot-tall (500-meter-tall) cliffs at Mars’ north pole began to crumble. Such cliffs reveal the deep time scales on the planet, exposing the many layers of ice and dust that have settled during different eras. Like the rings of a tree, each layer has a story to tell scientists about how the environment was changing.
That’s Going to Leave a Dent
Mars has a thin atmosphere – just 1% as dense as Earth’s. As a result, there’s less of a protective barrier to burn up space debris. That means larger meteors make it through the Red Planet’s atmosphere than Earth’s. CTX has detected over 800 new impact craters during MRO’s mission. After CTX spotted this one, scientists took a more detailed image with HiRISE.
The crater spans approximately 100 feet (30 meters) in diameter and is surrounded by a large, rayed blast zone. In examining the distribution of ejecta – the debris tossed outward during the formation of a crater – scientists can learn more about the impact event. The explosion that created this crater threw ejecta as far as 9.3 miles (15 kilometers).
The Face of Time
Land changes over time, so having a spacecraft at Mars for years offers a unique perspective. “The more we look, the more we discover,” said Leslie Tamppari, MRO’s deputy project scientist at JPL. “Before MRO, it wasn’t clear what on Mars really changed, if anything. We thought the atmosphere was so thin that there was almost no sand motion and most dune movement happened in the ancient past.”

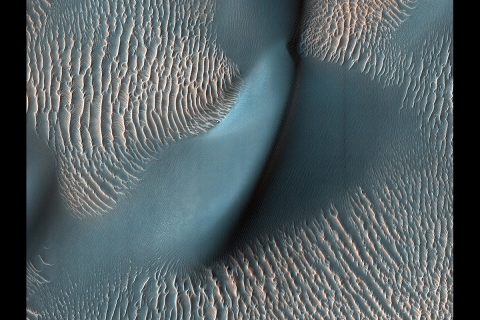

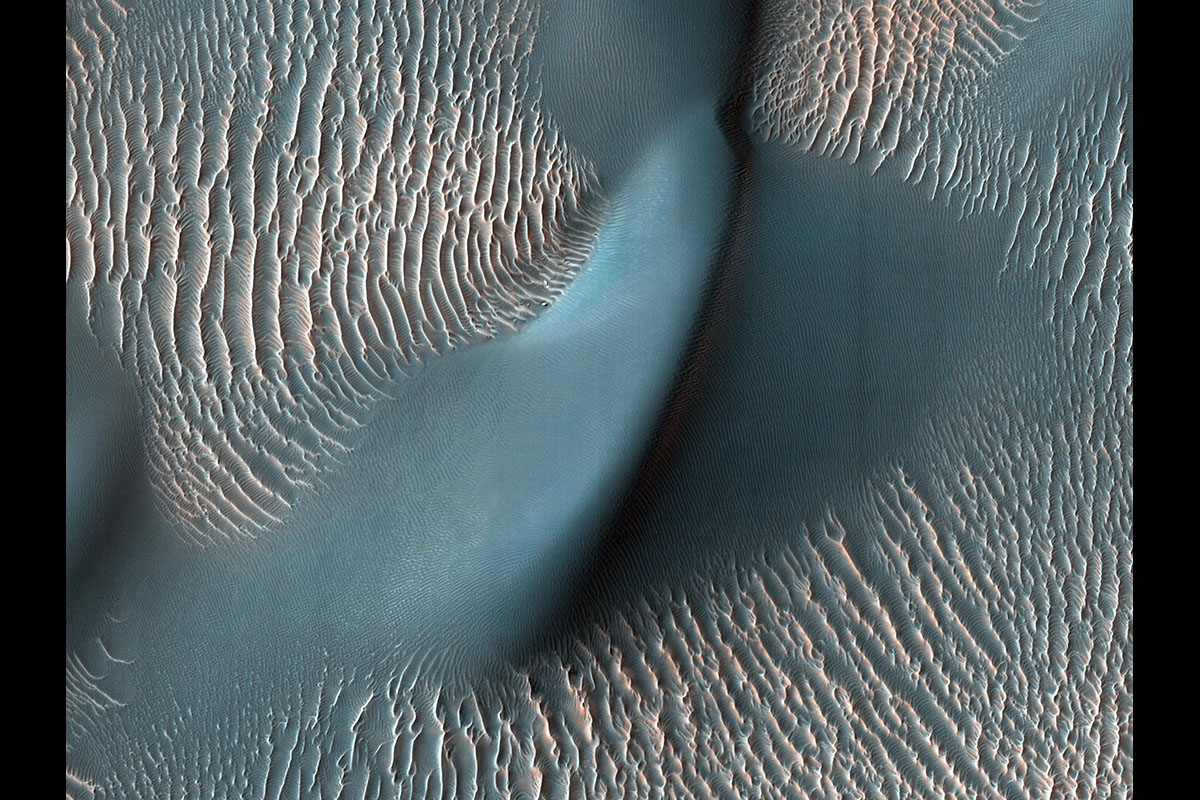

We now know that’s not the case. “False color” has been added to this image to accentuate certain details, like the tops of dunes and ripples. Many of these landforms are migrating, as they do on Earth: Sand grain by sand grain, they’re carried by wind, crawling across the planet over millions of years.
Back Atcha, Earth
MRO hasn’t only looked at Mars. This composite, made from four sets of HiRISE images of Earth and our Moon, was actually the second time that HiRISE had captured our home planet.
Named for the Greek god of fear, Phobos is one of Mars’ two moons (Deimos, named for the god of terror, is the other), and it’s only about 13 miles (21 kilometers) across. Stickney Crater, the indentation on the moon’s lower right, is about 5.6 miles (9 kilometers) wide in this HiRISE image.
Despite its small size, Phobos is of great interest to scientists: Is it a captured asteroid, or a chunk of Mars that broke off after a massive impact? A Japanese mission is scheduled to launch to Phobos in the near future, and the moon has been proposed as a staging ground for astronauts before they go to Mars.

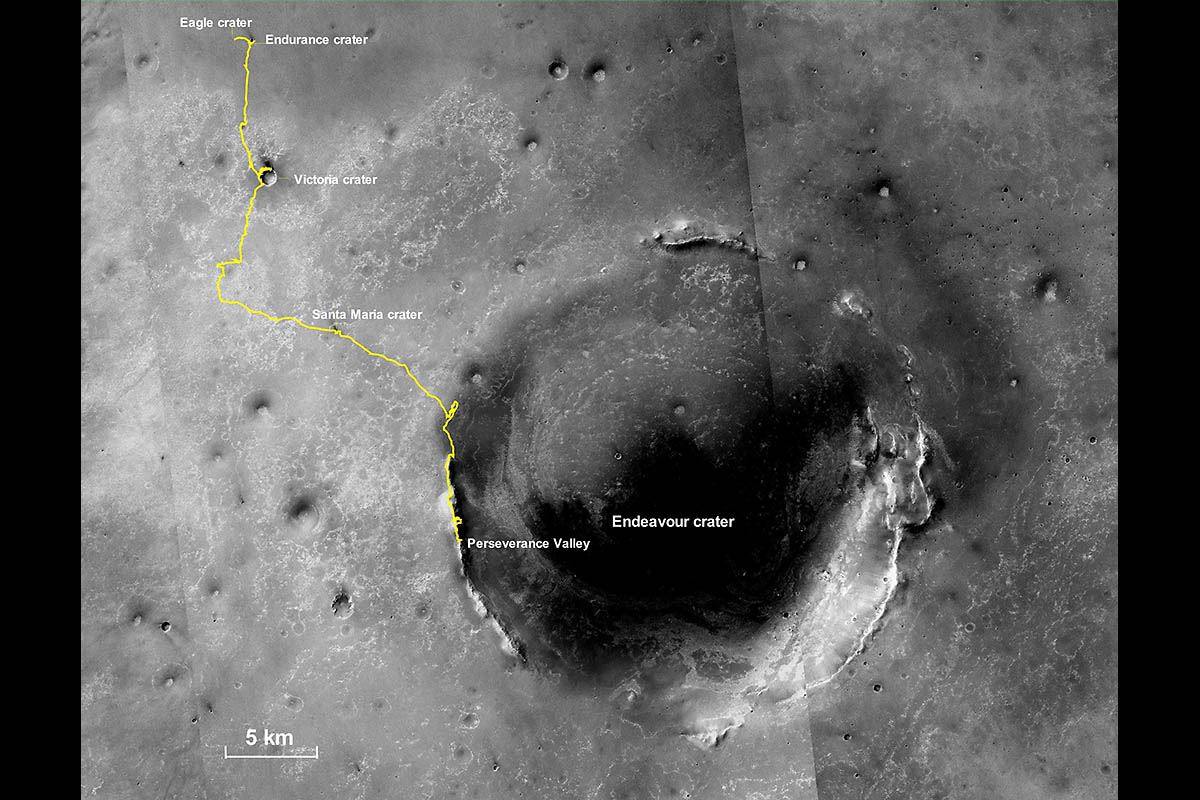

Based on an image from CTX, this map shows the complete traverse of the Opportunity rover after exploring the planet for more than 15 years. Both HiRISE and CTX are used by scientists to make maps of landing sites for future human and robotic missions as well as to chart the progress of rovers on the ground.
HiRISE has frequently been used to snap images of NASA spacecraft on the Martian surface, capturing Spirit, Opportunity, and Curiosity as well as the stationary landers Phoenix and InSight. NASA’s newest rover, Perseverance, is currently on its way to Jezero Crater. After it arrives on February 18th, 2021, you can bet there will be some images of it as well.
The Eyes Have It

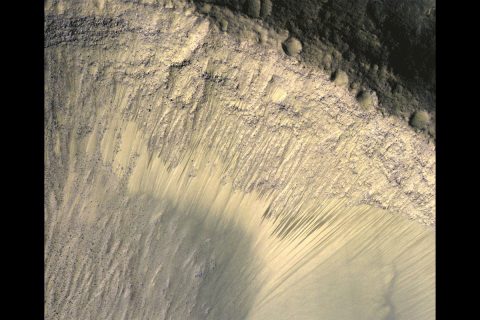

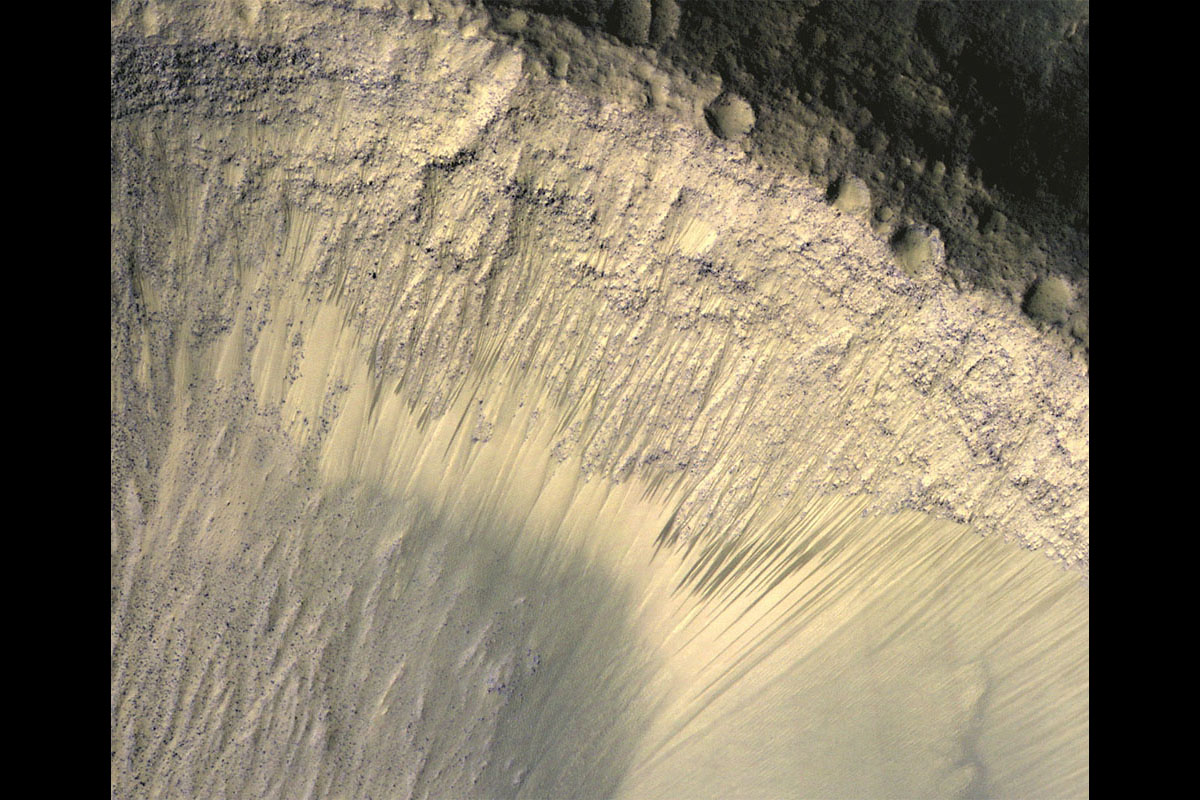

It takes sharp eyes to find unique features on Mars, like recurring slope lineae. These dark streaks appear in the same places at around the same times of year. It was initially proposed they were caused by brine, since salt could allow water to remain liquid in the thin Martian atmosphere. The consensus now, however, is that they’re actually caused by dark sand sliding down inclines.
The streaks were discovered by Lujendra Ojha, who was an undergraduate at the University of Arizona, which operates the HiRISE camera, and now is a professor at Rutgers University. “Sometimes you’re just looking at the right place at the right time,” Ojha said. “I was completely baffled when I first spotted this, because I was just a student at the time – I wasn’t even in a planetary program.” Undergraduates work alongside experienced scientists to spot unique features like these in HiRISE images.
Want to see more? Scientists and the public can request specific kinds of MRO images.
For more information about MRO:
JPL, a division of Caltech in Pasadena, California, manages the MRO mission for NASA’s Science Mission Directorate in Washington. The University of Arizona, in Tucson, operates HiRISE, which was built by Ball Aerospace & Technologies Corp., in Boulder, Colorado. MARCI and the Context Camera were both built and are operated by Malin Space Science Systems in San Diego.
