NASA uses several Instruments to watch Hurricane Lane

NASA’s Jet Propulsion Laboratory

NASA - National Aeronautics and Space AdministrationPasadena, CA – Instruments on NASA’s Terra and Aqua satellites were watching as Hurricane Lane — a category 2 storm as of Friday, August 24th — made its way toward Hawaii.

NASA’s Multi-angle Imaging SpectroRadiometer (MISR) captured images of Lane on just before noon local time on August 24th. MISR, flying onboard NASA’s Terra satellite, carries nine cameras that observe Earth at different angles. It takes approximately seven minutes for all the cameras to observe the same location, and the motion of the clouds during that time is used to compute the wind speed at the cloudtops.

Image of Hurricane Lane. (NASA/GSFC/LaRC/JPL-Caltech)
Image of Hurricane Lane. (NASA/GSFC/LaRC/JPL-Caltech)

The image shows the storm as viewed by the central, downward-looking camera. Also included is a stereo anaglyph, which combines two of the MISR angles to show a three-dimensional view of Lane. The image has been rotated in such a way that north is at the bottom. You will need red-blue glasses to view the anaglyph (with the red lens placed over your left eye).

NASA’s Atmospheric Infrared Sounder (AIRS) captured Hurricane Lane when the Aqua satellite passed overhead on August 22nd and 23rd. The infrared imagery represents the temperatures of cloud tops and the ocean surface.

Purple shows very cold clouds high in the atmosphere above the center of the hurricane, while blue and green show the warmer temperatures of lower clouds surrounding the storm center. The orange and red areas, away from the storm, have almost no clouds, and the ocean shines through.

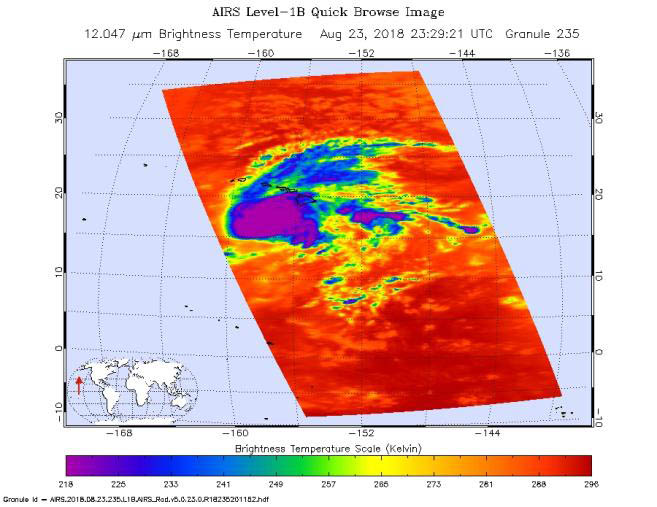

This image shows Hurricane Lane as observed by the Atmospheric Infrared Sounder (AIRS) instrument on NASA's Aqua satellite on Thursday, August 23rd. (NASA/JPL-Caltech)
This image shows Hurricane Lane as observed by the Atmospheric Infrared Sounder (AIRS) instrument on NASA’s Aqua satellite on Thursday, August 23rd. (NASA/JPL-Caltech)

In the August 22nd image, a prominent eye is also visible. No eye is visible on the August 23rd image, either because it was too small for AIRS to detect or it was covered by high, cold clouds.

MISR was built and is managed by NASA’s Jet Propulsion Laboratory in Pasadena, California, for NASA’s Science Mission Directorate in Washington. JPL is a division of Caltech. The Terra spacecraft is managed by NASA’s Goddard Space Flight Center in Greenbelt, Maryland. The MISR data were obtained from the NASA Langley Research Center Atmospheric Science Data Center in Hampton, Virginia.

AIRS, in conjunction with the Advanced Microwave Sounding Unit (AMSU) senses emitted infrared and microwave radiation from Earth to provide a three-dimensional look at Earth’s weather and climate. Working in tandem, the two instruments make simultaneous observations all the way down to Earth’s surface, even in the presence of heavy clouds.

With more than 2,000 channels sensing different regions of the atmosphere, the system creates a global, three-dimensional map of atmospheric temperature and humidity, cloud amounts and heights, greenhouse gas concentrations, and many other atmospheric phenomena. Launched into Earth orbit in 2002, the AIRS and AMSU instruments fly onboard NASA’s Aqua spacecraft and are managed by JPL.
